Sand Surfaced Backed HDPE Waterproofing Membrane Pre Laid Waterproof Membrane Roll

Sand Surfaced Backed HDPE Waterproofing Membrane Pre Laid Waterproof Membrane Roll

Brand Name:	shhous
Model Number:	1.0mm，1.2mm，1.5mm，2.0mm
MOQ:	3000㎡
Price:	USD 2.2‑3.8 /㎡
Supply Ability:	500000㎡per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO

Color:

White, Green, Or Customized Color

Thickness:

1.2mm, 1.5mm, 2.0mm, (custom Thickness Available)

Width:

2.05m (customized Width Optional)

Length:

20m (customized Length Optional)

Tensile Force/(N/50 Mm):

≥600

Tensile Strength/MPa:

≥16

Membrane Breaking Elongation/%:

≥400

Heat Resistance:

80 ℃, 2 h: No Slipping, Flowing Or Dripping

Low‑temperature Flexibility:

Adhesive Layer:‑25 ℃, No Crack

Packaging Details:

Plastic woven bags / Customizable

Highlight:

backed hdpe waterproofing membrane

pre laid waterproof membrane roll

hdpe waterproofing membrane pre laid

Product Description

Sand-surfaced Backed Hdpe Pre-laid Waterproof Membrane

Product Advantages

1. Dual-sided structure: The backing layer strengthens tensile and tear resistance; the sand-coated layer provides strong concrete interlock, stable dimension and less construction damage.

2. Pre-laid reverse bonding & anti-water channeling: The sand surface interlocks firmly with post-poured concrete, integrating waterproof layer with structure to eliminate hidden leakage and water channeling.

3. High puncture and tear resistance: HDPE base material effectively resists piercing and extrusion from steel bars and gravel.

4. Cold application & safe construction: No open flame, no hot melt. Construction available on damp substrates, safe for underground confined spaces.

5. Non-asphalt & high durability: Excellent acid, alkali and groundwater corrosion resistance, no aging or migration for long-term underground waterproofing.

6. Cost and time saving: No additional cement protective layer required, simplifying procedures and reducing project cost.

No.	Item		Index‑P
1	Tensile property	Tensile force/(N/50 mm) ≥	600
		Tensile strength/MPa ≥	16
		Membrane breaking elongation/% ≥	400
		Phenomenon during stretching	Adhesive layer shall not separate from main material or substrate
2	Nail‑rod tear resistance/N	≥	400
3	Puncture‑resistance strength/N	≥	350
4	Impact resistance (0.5 kg·m)		No leakage
5	Static load resistance		20 kg, no leakage
6	Heat resistance		80 ℃, 2 h: no slipping, flowing or dripping
7	Low‑temperature bending property		Main material:‑35 ℃, no crack
8	Low‑temperature flexibility		Adhesive layer:‑25 ℃, no crack
9	Oil‑penetration resistance /number of sheets	≤	1
10	Water‑channeling resistance (hydraulic gradient)		0.8 MPa/35 mm, 4 h no water channeling
11	Water impermeability (0.3 MPa,120 min)		Water‑impermeable

Construction Process

1. Substrate treatment: Remove sharp debris and bumps. Flat and damp surface is acceptable, no standing water.

2. Directional laying: Lay the membrane with backing side down and sand surface upward toward concrete structure.

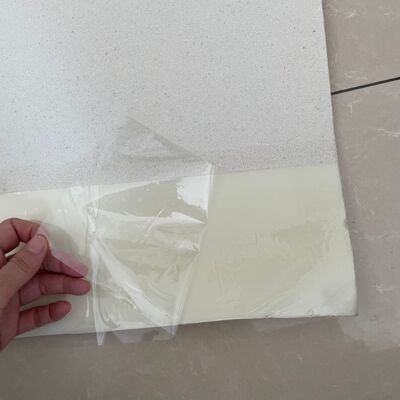

3. Lap sealing: Remove release film, press laps tightly. Apply reinforcement at corners and details.

4. Edge fixing: Fix and seal membrane ends and laps with pressure strips to avoid displacement and blistering.

5. Finished product protection: Avoid sharp impact and puncture. Complete steel bar binding timely.

6. Concrete pouring: Pour concrete directly on the sand surface to achieve integral reverse bonding waterproof structure.

Application Scenarios

Suitable for all underground pre-laid reverse bonding waterproof projects: Basement slabs, underground garages,

underground side walls, subways, tunnels, utility tunnels, civil air defense projects and other underground structures.

Not applicable: Exposed roof and long-term outdoor sunlight environment.
