| Brand Name: | shhous |
| Model Number: | 1.2mm，1.5mm，2.0mm |
| MOQ: | 3000㎡ |
| Price: | USD 1.23‑2.9 /㎡ |
| Supply Ability: | 500000㎡per Month |

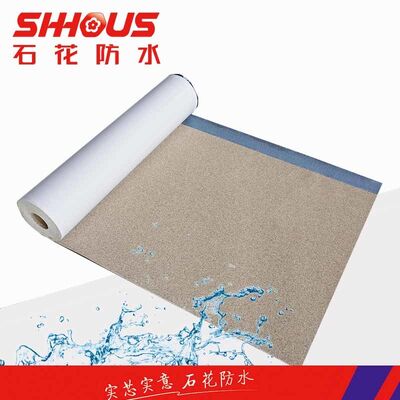

Hdpe Self Adhesive Waterproof Membrane Skin Type For Trench Floor Waterproofing
Product Description
HDPE self-adhesive pre-applied waterproof membrane is a polymer waterproof material specially designed for underground waterproofing works.
The membrane features a three-layer composite structure:
1. Base Substrate: Virgin HDPE (High-Density Polyethylene) sheet, serving as the core anti-seepage layer;
2. Polymer Self-Adhesive Layer: Asphalt-free eco-friendly reactive pressure-sensitive adhesive that achieves chemical crosslinking with cement mortar;
3. Reactive Anti-Stick Sand Layer: Covers and protects the adhesive layer, forming a tenon-and-mortar interlock structure during concrete pouring.
An 80–100 mm self-adhesive overlapping edge is reserved along each side of the membrane. The whole construction process adopts cold application and the pre-laid reverse-bonding method: lay the membrane loosely on the cushion layer with the sand-coated surface facing upward. Steel bars can be bound directly before concrete pouring. The adhesive layer integrates perfectly with post-cast concrete to form a skin-type fully bonded waterproof layer, completely eliminating the common problem of water channeling between layers.
| Item | Property | Direction | Unit | Index |
| Tensile Property | Tensile Force | Longitudinal | N/50mm | ≥600 |
| Transverse | N/50mm | ≥600 | ||
| Tensile Strength | Longitudinal | MPa | ≥16 | |
| Transverse | MPa | ≥16 | ||
| Elongation at Break /% | Longitudinal | / | ≥400 | |
| Transverse | / | ≥400 | ||
| Condition under tensile loading | / | No separation between adhesive layer and base material / reinforcement | ||
| Nail Tear Resistance | Longitudinal | N | ≥400 | |
| Transverse | N | ≥400 | ||
| Puncture Resistance | N | ≥350 | ||
| Impact Resistance (0.5kg·m) | / | No leakage | ||
| Static Load Resistance | / | 20kg, no leakage | ||
